GEWISS Outlet With Lock - Rectangular - 16 Amps - IP44

GEWISS Outlet With Lock Rectangular 16A

4.50 out of 5

3.474,83 EGP – 4.157,01 EGPEarn up to 4,157 points.

GEWISS Outlet With Lock – Rectangular – 16 Amps – IP44

Socket Outside GEWISS Rectangular Lock 16 Amp IP44
Manufacturer: GEWISS
Type: vertical
Color: red – blue
Voltage: 200-415 volts
Current: 32 amps
Frequency: 50-60HZ
3PIN – 4PIN – 5PIN
Lockable rotary switch
ABS PVC body
Protection degree IP44
Material: plastic
hinged cover
Long life

SKU: Gahzly_667812 Categories: Electric Accessories, Gewiss, Plugs & Sockets Tags: Accessories, Ampere, electric, Fire Extinguishing Line Supplies, Gewiss, gewiss, ip44, outside, plug, Socket, باللوك, مستطيلة Brand: جويس

Description

GEWISS Outlet With Lock Rectangular 16A IP44

Manufacturer: GEWISS

3PIN – 4PIN – 5PIN

3PIN

GW66004

Closed Closed Horizontal Outlet – With Bottom – Without Base Fuse Holder – 2P+E 16A 200-250V – 50/60HZ 6H – IP44 Industrial outlet system for power distribution in the industrial and commercial sector, with locking device, allowing to meet the most diverse professional requirements of installers and builders paintings.
IP44 horizontal sockets and IP44 integrated socket outlets

product specification :-

Type: vertical
Color: blue
200-250 volts
16 amps
2pin neutral and ground
Total 3 PIN ( pee )
Lockable rotary switch
ABS PVC body
IP44
hinged cover

Technical Specifications:-

Body color: blue
Material: plastic
2PIN and Earth
PIN3 : Total
Current: 16 amps
Voltage: 200-250 volts
Frequency: 50-60HZ
Protection degree IP44
Age: long life

Dimensions

Basic Dimensions – Height 115 mm Width 155 mm Depth 108 mm

4PIN

GW66008

Closed Closed Horizontal Outlet – With Bottom – Without Base Fuse Holder – 3P+E 16A 380-415V – 50/60HZ 6H – IP44 Industrial outlet system for power distribution in the industrial and commercial sector, with locking device, allowing to meet the most diverse professional requirements of installers and builders paintings.
IP44 horizontal sockets and IP44 integrated socket outlets

product specification :-

Type: vertical
Color: red
Voltage: 380-415 volts
16 amps
3pin neutral and ground
Total 4pin
Lockable rotary switch
ABS PVC body
IP44
hinged cover

Technical Specifications:-

Body color: blue
Material: plastic
3PIN and Earth
PIN4 : Total
Current: 16 amps
Voltage: 200-250 volts
Frequency: 50-60HZ
Protection degree IP44
Age: long life

Dimensions

Basic Dimensions – Height 115 mm Width 155 mm Depth 118 mm

5PIN

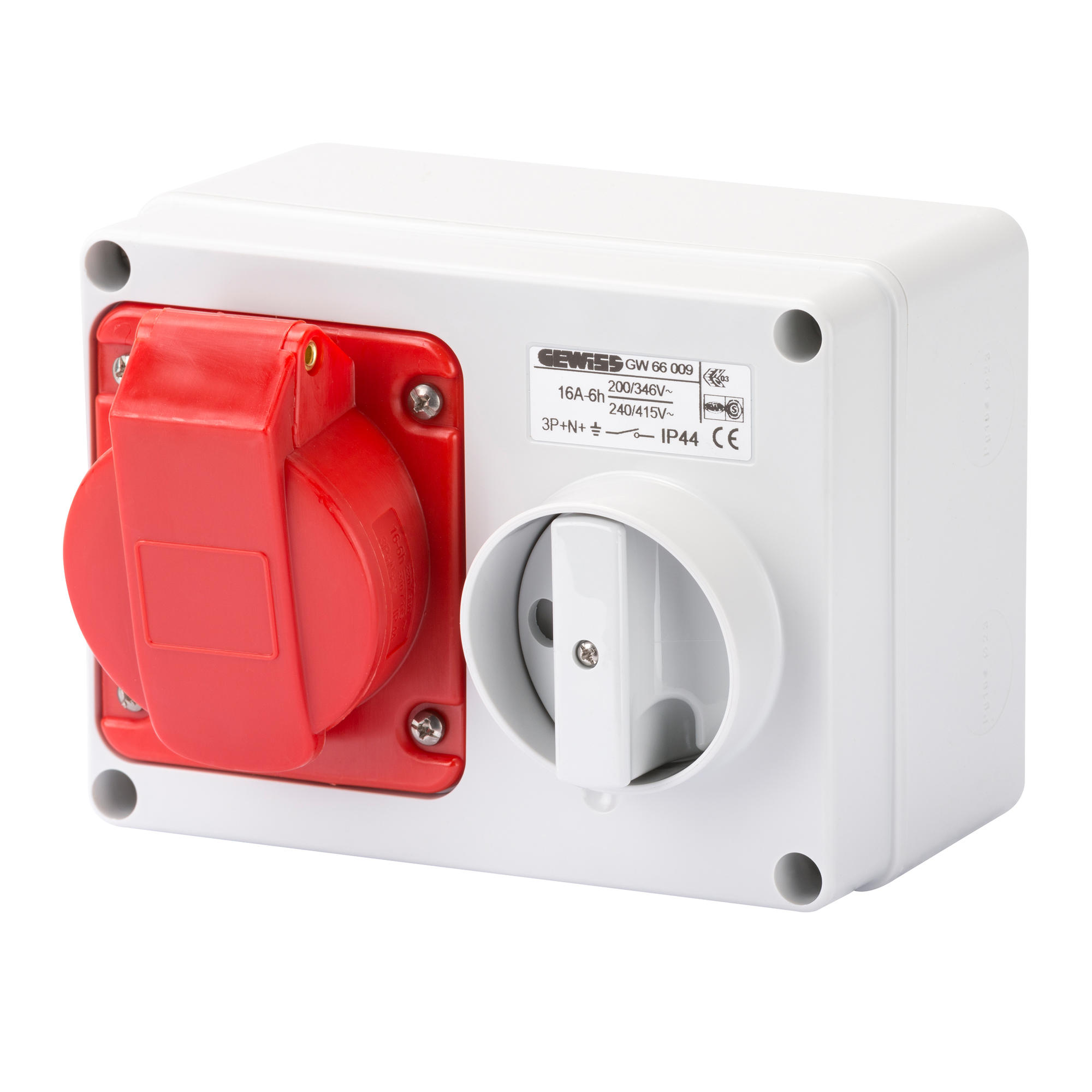

GW66009

Closed Closed Horizontal Outlet – With Bottom – Without Base Fuse Holder – 4P+N+E 16A 346-415V – 50/60HZ 6H – IP44 Industrial outlet system for power distribution in the industrial and commercial sector, with locking device, allowing to meet the most diverse professional requirements For installers and panel builders.

IP44 horizontal sockets and IP44 integrated socket outlets

product specification :-
