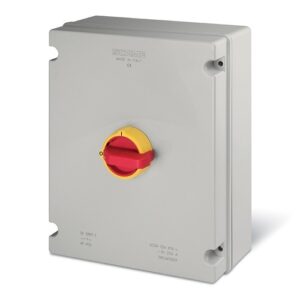

SWITCH DISCONNECTOR 100A IP65 SCAME
9.625,00 EGP – 23.380,00 EGP
SWITCH DISCONNECTOR 100A IP65 SCAME
- Body colour: red-yellow
- Material: plastic
- Rated current (A): 100A
- Protection degree: IP65
- 3PIN – 4PIN – 6PIN
- Voltage: 415 volts
- Frequency: 50/60 Hz
- Mechanical resistance: IK09
- ref h6
- Age: long life
- Description
- Shipping
- ads
- Additional information
- More Products
- Product Enquiry
Description
Description
SWITCH DISCONNECTOR 100A IP65 SCAME
Manufacturer: SCAME
3PIN ,100A
590.EM10003
It is a set of switches, sockets, redundant and fixed outlets for industrial use, sockets and sockets with current rating
100A – KEY – IP65- 3P 100A 415 V 50/60HZ- 6H
100A outlets and sockets – straight movable form and 10 degree fixed – weatherproof with protection grade IP up to IP65 (the first and only in the electrical tech scene to have this).
It is widely used in many applications and also in specific formulations.
product specification :-
- Colors: yellow-red
- Shape: rectangular
- Electrical current: 100 amps
- 3P
- ABS PVC body
- IP65 degree of protection
- forked terminal connection
Technical Specifications:-
- Baku Switch SCAM SWITCH OUTSIDE 100 AMP IP65
- Body colour: red-yellow
- Material: plastic
- Rated current (A): 100A
- Protection degree: IP65
- Number of columns: 3P
- Voltage: 415 volts
- Frequency: 50/60 Hz
- Mechanical resistance: IK09
- Class: II2D
- 16-50mm² Flexible Cable – 25-70mm² Rigid Cable
- Operating temperature: -25 +60 ° C
- ref h6
- Age: long life
Dimensions
- Basic dimensions: 160 * 220 * 115 mm
Materials used:
- (Copper 58%, Zinc 40%, Lead 2%)
- Non-detachable tips with included non-detachable screws
- Cable clip with wear-resistant cable
Product Benefits:
- 4 levels of IP for complete protection
- High resistance to mechanical stress
- Safe and intuitive assembly
4PIN (100A)
590.EM10005
It is a set of industrial use switches, sockets, redundant and fixed outlets, sockets and sockets 100A – KEY – IP65- 3P + N + E 100A 415 V 50 / 60HZ – 6H
100 amp outlets and sockets – straight movable and 10 degree fixed – watertight with IP protection rating of IP65 (the first and only in the electrical tech scene to have this).
The 16-32A versions require fast screw or spring wires, while the 63-125A ones use branched terminal contact technology.
It is widely used in many applications and also in specific formulations.
product specification :-
- Colors: yellow-red
- Shape: rectangular
- Electrical current: 100 amps
- 3P + E
- total = 4P
- ABS PVC body
- IP65 degree of protection
- forked terminal connection
Technical Specifications:-
- Baku Switch SCAM SWITCH OUTSIDE 100 AMP IP65
- Body colour: red-yellow
- Material: plastic
- Rated current (A): 100A
- Protection degree: IP65
- 3P + E
- total = 4P
- Voltage: 415 volts
- Frequency: 50/60 Hz
- Mechanical resistance: IK09
- Class: II2D
- 16-50mm² Flexible Cable – 25-70mm² Rigid Cable
- Operating temperature: -25 +60 ° C
- ref h6
- Age: long life
Dimensions
- Basic dimensions: 160 * 220 * 115 mm
Materials used:
- (Copper 58%, Zinc 40%, Lead 2%)
- Non-detachable tips with included non-detachable screws
- Cable clip with wear-resistant cable
Product Benefits:
- 4 levels of IP for complete protection
- High resistance to mechanical stress
- Safe and intuitive assembly
6PIN (40A)
590.EM10006
SCAME is a set of industrial use fixed redundant switches, sockets and sockets, 100A sockets and sockets – KEY – IP65- 5P + E 100A 415V 50 / 60HZ- 6H
100 amp outlets and sockets – straight movable and 10 degree fixed – watertight with IP protection rating of IP65 (the first and only in the electrical tech scene to have this).
It is widely used in many applications and also in specific formulations.
product specification :-
- Colors: yellow-red
- Shape: rectangular
- Electrical current: 100 amps
- 5P + E
- ABS PVC body
- IP65 degree of protection
- forked terminal connection
Technical Specifications:-
- Baku Switch SCAM SWITCH OUTSIDE 100 AMP IP65
- Body colour: red-yellow
- Material: plastic
- Rated current (A): 100A
- Protection degree: IP65
- Number of columns: 5P + E = 6PIN
- Voltage: 415 volts
- Frequency: 50/60 Hz
- Mechanical resistance: IK09
- Class: II2D
- 16-50mm² Flexible Cable – 25-70mm² Rigid Cable
- Operating temperature: -25 +60 ° C
- ref h6
- Age: long life
Dimensions
- Basic Dimensions: 228 * 308 * 128 mm
Materials used:
- (Copper 58%, Zinc 40%, Lead 2%)
- Non-detachable tips with included non-detachable screws
- Cable clip with wear-resistant cable
Product Benefits:
- 4 levels of IP for complete protection
- High resistance to mechanical stress
- Safe and intuitive assembly
SCAME
Shipping
ads
Additional information
More Products
Product Enquiry
