the description:

•  High strength screw insulator and complex insulators.
• The product is generally cylindrical, with one screw hole at each end and a screw for fixing the line to be connected.
• This is a set of insulators, including 2 pieces, with the corresponding screws.
• Widely used in low and high power distribution cabinet.
• For power distribution, transmission, copper or aluminum busbar fixing, etc., play the role of insulation and conduction.
• Good electrical resistance, heat resistance, fire resistance, low shrinkage and water resistance, excellent texture and fine workmanship are your choice.

product specification

•  Busbar Insulator SM-40 Polyester standoff insulators with screw

• Product type: rosette accessories
• (with screw) conductor insulator, complex insulators.
• Colour: red.
• Product height: 40 mm (1.57 in).
• With a screw (M8).
• تخصيص SM-25 – SM-30 – SM-35 – SM-40 – SM-51 – SM-76
• Available size 25 x 6mm, 30 x 6mm, 35 x 8mm, 40 x 8mm, 51 x 10mm, 76 x 12mm
• Widely used in high low power distribution cabinet.
• Power distribution, transmission, copper or aluminum busbar fixing
• Play the role of mining and calling.
• Long life

Insulator for Copper Stud Bars

Product Description

• We are a unique name in the industry for providing our prestigious clients with an exclusive range of Bus Bar Insulator.

For example :-

 Busbar Insulator SM-40 Polyester standoff insulators with screw

Technical specifications

• SM-40
• Height: 40 mm
• Material: resin
• Screw: M8
• Material: brass
• Screw hole depth: 10.5 mm
• Strength: axial tensile 3000N, bending 5000N, tensile torque 15N/m
• Insulation resistance >1000MΩ

Electrical properties:

• Operating voltage: 600 volts
• Pulse voltage: 5000 volts
• Leakage current < 1 mA at 2000 V operating voltage
• Minimum arc distance: 15 (mm)

the description :

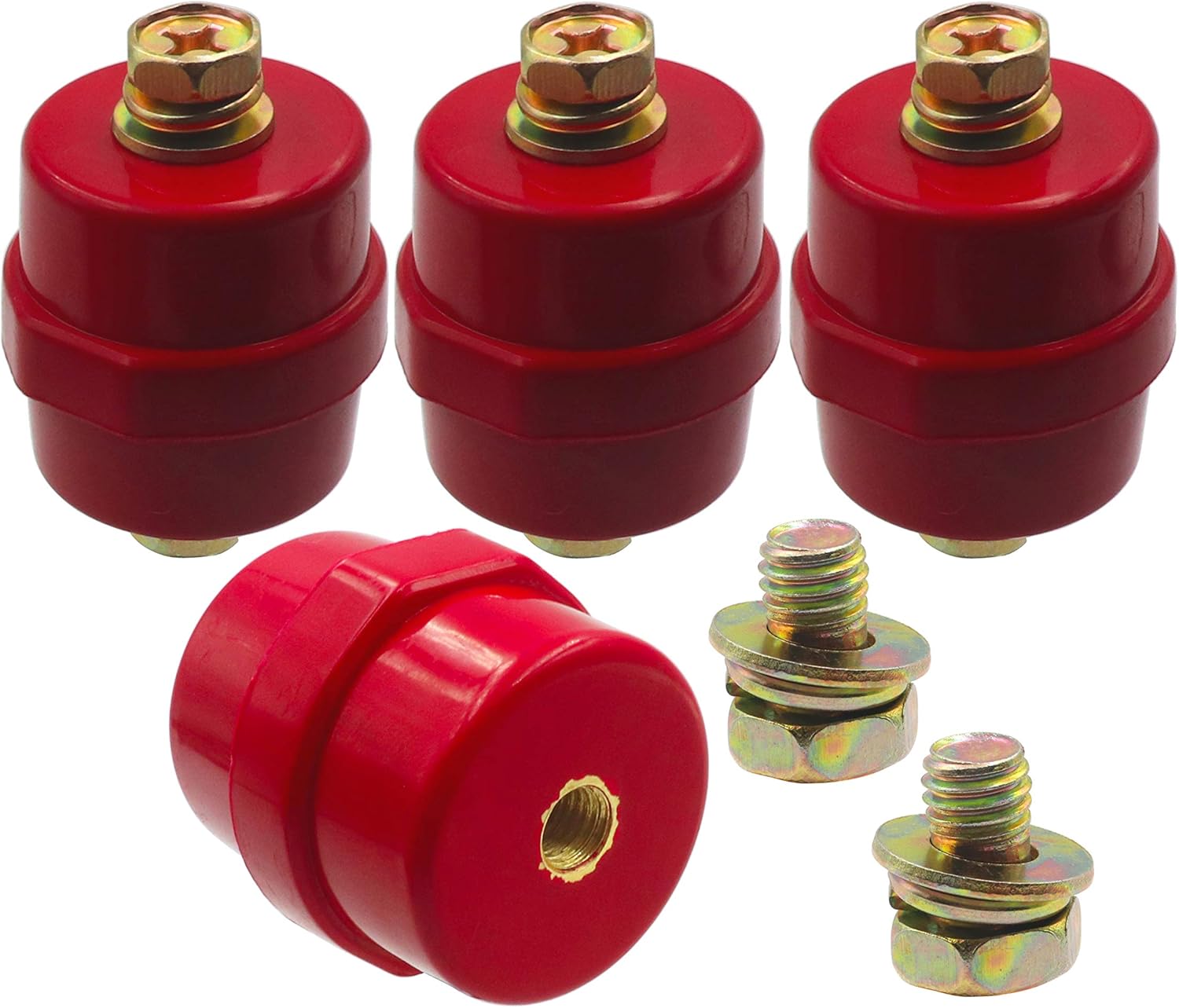

• SM-40 with high strength screw insulator and complex insulators.
• The product is generally cylindrical, with one screw hole at each end and a screw for fixing the line to be connected.
• This is a set of insulators, including four pieces, with the corresponding screws.
• Widely used in high low power distribution cabinet for power distribution, transmission, copper or busbar repair
• Aluminum, etc., play the role of insulation and conduction.
• Good electrical resistance, heat resistance, fire resistance, low shrinkage and water resistance, excellent texture and fine workmanship are your choice.

Features:

• high strength
• Smooth finish
• optimum durability

Wide use

Insulator for Copper Stud Bars
