Industrial Plug, Gewiss, 32 amp, IP44

0 out of 5

639,54 EGP – 810,08 EGPEarn up to 810 points.

Industrial Plug, Gewiss, 32 amp, IP44

Manufacturer: GEWISS
Body color: red-blue
Material: Plastic
Current rating (A): 32 amps
Protection degree: IP44
PIN3 – PIN4 – PIN5
Electrical voltage: 415 – 200 volts
90 degree socket for surface mounting
Frequency: 50/60 Hz
Wire type with screw
Age: long life

SKU: Gahzly_222715 Categories: Electric Accessories, Gewiss, Plugs & Sockets Tags: Accessories, Ampere, electric, Fire Extinguishing Line Supplies, Gewiss, gewiss, Inside, ip44, plug, Socket Brand: جويس

Description

Industrial Plug, Gewiss, 32 amp, IP44

Manufacturer: GEWISS

3PIN

GW62216H

It is a set of redundant and fixed plugs and outlets for industrial use, plugs and sockets with a rated current of 32 amps.

Outlet with Handle with 10° Slant Surface – Hz IP44 – 2P+E 32A – 200-250V – 50/60 – Blue – 6H – Screw Cord – Square IEC 309 HP system includes plugs and socket outlets from 16A to 125A – Straight movable and 10 degree stabilizer – weatherproof with IP protection grade up to IP44 (the first and only one in the electrotechnical scene to have this).

The 16-32A versions require spiral or spring-loaded wires, while the 63-125A ones use branched terminal connection technology.

It is widely used in many applications and also in specific formulations.

product specification :-

Colour: blue
Rectangular base
90 degree socket for surface mounting
Voltage: 200-250 volts
Electrical current: 32 amps
2PIN neutral and ground
Total 3 PIN (Paul)
Body ABS PVC
IP44 protection degree

Technical specifications:-

Body colour: blue
Material: Plastic
Age: long life
Current rating (A): 32 amps
Protection degree: IP44
Number of columns: 2P + E
3IN: Total
Mechanical resistance: IK08
Reference h6
Voltage: 200-250 volts
90 degree socket for surface mounting
Frequency: 50/60 Hz
16-50mm² flexible cable – 25-70mm² rigid cable
Operating temperature: -25 +55°C
Wire type with screw
Age: long life

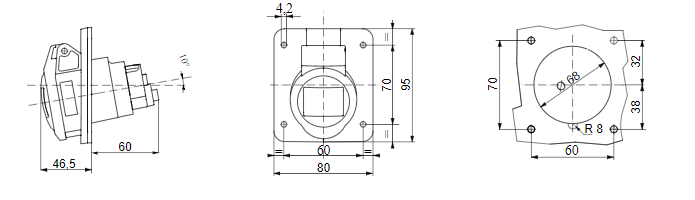

Dimensions

Basic dimensions: 95mm * 80mm * 106.5mm

Materials used:

(Copper 58%, Zinc 40%, Lead 2%)
Non-removal tips with included non-removal screws
Cable clip with corrosion resistant cable

Product benefits:

4 IP levels for complete protection
High resistance to mechanical stress
Safe and intuitive assembly

4PIN

GW62220H

It is a set of redundant and fixed plugs and outlets for industrial use, plugs and sockets with a rated current of 32 amps.

10 Degree Slanted Outlet – IP44 – 3P+E – 32A 380-415V 50/60HZ – Red – 6H – Screw Cord IEC 309 HP system includes 16 to 125 A socket plugs and outlets – Straight and 10 Degree Fixed – Blocked Waterproof with an IP protection rating of up to IP44 (the first and only one in the electrical technical scene to have this).

The 16-32A versions require spiral or spring-loaded wires, while the 63-125A ones use branched terminal connection technology.

It is widely used in many applications and also in specific formulations.

product specification :-

Colour: red
Rectangular base
90 degree socket for surface mounting
Voltage: 380-415 volts
Electrical current: 32 amps
3PIN neutral and ground
Total 4 PIN (Paul)
Body ABS PVC
IP44 protection degree

Technical specifications:-

Body colour: red
Material: Plastic
Age: long life
Current rating (A): 32 amps
Protection degree: IP44
Number of columns: 3P + E
PIN4 : Total
Mechanical resistance: IK08
Reference h6
Voltage: 380-415 volts
90 degree socket for surface mounting
Frequency: 50/60 Hz
16-50mm² flexible cable – 25-70mm² rigid cable
Operating temperature: -25 +55°C
Wire type with screw
Age: long life

Dimensions

Basic dimensions: 95mm * 80mm * 106.5mm

Materials used:

(Copper 58%, Zinc 40%, Lead 2%)
Non-removal tips with included non-removal screws
Cable clip with corrosion resistant cable

Product benefits:

4 IP levels for complete protection
High resistance to mechanical stress
Safe and intuitive assembly

5PIN

GW62221H

It is a set of redundant and fixed plugs and outlets for industrial use, plugs and sockets with a rated current of 32 amps.

10° Slanted Outlet – IP44 – 3P +N+ E 32A – 380-415V – 50/60HZ – Red – 6H – Screw Cord IEC 309 HP includes 16 to 125 A plugs and outlets – straight and 10 degrees Proven – weatherproof with an IP protection rating of up to IP44 (the first and only one in the electrical technical scene to have this).

The 16-32A versions require spiral or spring-loaded wires, while the 63-125A ones use branched terminal connection technology.

It is widely used in many applications and also in specific formulations.
