The difference between wire and electric cable

 This section on The difference between wire and electric cable, we will examine the basic difference between the two types of electrical conductors wire and cable. In the fields of electrical engineering and communications, the terms “wire” and “cable” are frequently seen. However, individuals tend to confuse the two words with each other because they sound similar, but are actually very different. In addition, we will give you a brief explanation of the distinction between wires and cables in the next section of this article. Now, let’s take a look at the basic distinction that exists between wire and cable. The most basic and important distinction that can be made between wires and cables is that a wire has only one conductor, while a cable has several. These connectors, though, are made from a pretty standard material, which is either copper or aluminum. The wires are often exposed and twisted, and may or may not be bare. However, some wires have a very thin layer of PVC coating.

Cable

In the case of cables, the individual strands are laid in parallel and then twisted or bonded together to create a single sheath. Both the inner and outer casing have been created with the intention of ensuring user safety. Wire diameter is the unit of wire measurement. The gauge number is a gauge that is assigned to the wire and is based on the diameter of the wire. The higher the wire gauge number, the thinner the wire. The 10 and 20 gauge are ideal for use in home applications. However, keep in mind that larger cables carry more current and have the potential to damage household items by blowing fuses. Cable A cable often contains three sets of wires: a current-carrying hot wire, a neutral wire that helps complete the circuit, and a grounding wire. The total number of wires that make up the cable and the diameter of those wires are used to classify the cable. Now, let’s take a look at the many ways wires and cables can be used.

Wires and cables

Heating jewelry, clothing, automobiles, or any industrial components such as nails, bulbs, and needles requires the use of wire because of its ability to conduct electricity, support electrical loads, transmit telecommunications signals, and withstand electrical loads.

On the other hand, a cable can be used to transmit power, to transmit electrical signals, or to transmit communication signals. After having a quick look at several applications of copper wire and cable, we are now in a position to discuss the different types of wire and cable. Various electrical wires

1. A solid wire core is a single-conductor wire that can be insulated or left bare, often protected by a colored sheath. Solid wire is the most common type of wire. This wire has lower resistance than others, which makes it suitable for use in high frequency applications.
2. Twisted: A stranded wire has many small wire strands twisted together to form a single cable. Stranded wire can be used for a long period of time and is used in situations where flexibility is required. The cross-sectional area of ​​standard wire is much larger than that of annealed wire when compared to the latter.

Electrical wires and cables

Various forms can be taken by electrical cables

1. A cable consisting of two cables twisted together to form a single unit is called a twisted pair cable. Since this torsion is able to reduce the noise caused by the magnetic coupling, it is used for signal transmission. Data transmission and telephony are two of the most common applications for twisted pair cable.
2. Multi-conductor cable: This type of cable has two or more insulated conductors, and the primary function of these conductors is to maintain signal integrity. The term “balanced line configuration cables” may refer to cables with twisted pair configurations or multi-conductor configurations.
3. Coaxial Cable – A coaxial and network cable has an inner conductor covered by insulating layers and surrounded by an outer, parallel foil conductor that is also protected by insulating layers. The dielectric material acts as a barrier between the two conductors of the cable, preventing electric current from leaking between them. Due to the fact that their performance is more consistent than that of twisted pair cable, these cables are often used in cable television.
4. Fiber Optic Cable Signals are transmitted through a group of glass strands in a fiber optic cable, which, compared to metallic conductors, have a wider bandwidth. This means that fiber optic cables are capable of transmitting more information and data than metal conductors. As a result of this rationale, fiber optic cables are used instead of traditional copper cables.

Standards that apply to both wire and cable.

1. Any torn or damaged wires or cables must be replaced.
2. Ensure that all cords and cables are polarized and have safety locks on them.
3. Make sure that wires and cables are out of the reach of children, and if you are worried about the safety of your children, go for the flame retardant cables made by Finolex.
4. Refrain from placing wires and cables in areas where someone could easily stumble.

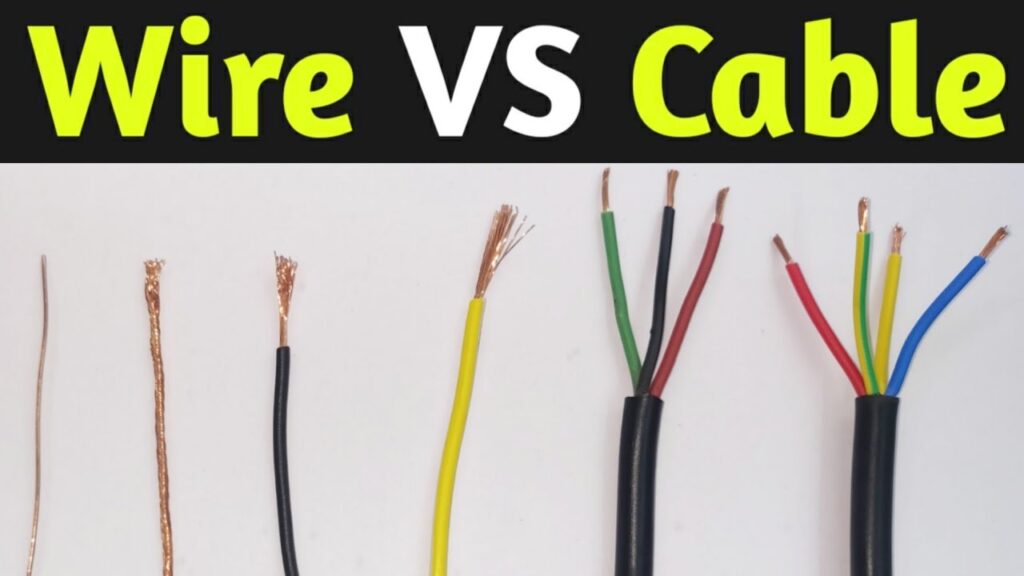

The difference between wire and cable

When we talk about the difference between wire, connector, and cable, the first thing we need to do is define when and how each of these things are used. When planning electrical installation work, it can be helpful to understand the differences and be able to describe them correctly. In order to prevent misunderstandings, we will focus on language that relates specifically to applications in the electrical contracting business. What exactly are wires? The single conductor is what makes up the wire, and is often made of copper, aluminum, or even steel (for uses other than electrical). Solid wire and stranded steel wire are the two most common forms of wire. Solid wire is a type of electrical conductor that consists of a single strand of copper, aluminum, or some other type of conductive metal that has been pulled into a long, thin thread-like structure while remaining rigid. Because it has lower resistance than other types of wire, solid wire is often used in applications that need it to handle higher frequencies. Stranded wire consists of many strands of stiff wire pulled into very thin, flexible thread-like strands. These strands can be twisted or braided together to produce a single conductor equivalent in size and weight to the solid wire from which it was derived. Stranded wire is often sheathed and is an excellent choice for jobs that require a greater degree of flexibility. conductorConductor is a word that refers to wires or strands that do not have any coating or insulation separating them from each other. After the necessary sheath has been placed in a stranded wire, for example, the individual wire strands that make up the stranded wire may be twisted or braided to create a single stranded conductor. The same can be said for single strands of annealed wire after it has been covered. Individual conductors may be as small as 22 AWG or as bulky as MCM rated wire. As long as each strand of wire is not insulated and connected to the other wires, it may consist of a single piece of wire or many strands of very thin wire (filaments). cableWhen trying to give a definition of a cable, the first thing one should always keep in mind is that a wire is one of the components that a cable is made of. Cables are groups of two or more conductors made up of stranded or solid wire that is twisted, coiled, or otherwise bound together. These conductors are grouped together to form a cable rebate. There are four basic types of cable: The term “twisted pair” refers to a configuration in which two cables are twisted together. Twisted pair cables are widely used in the fields of telecommunications and professional audio engineering, as well as in recording studios, theaters and intercom systems. A multi-conductor cable consists of many individual cables that are bundled together and insulated from each other. Because the insulation reduces the amount of crosstalk that occurs between the cables, multiconductor cables are a popular choice for use in the data transmission process.Coaxial cable is notable for its construction, which consists of a solid coaxial conductor and an outer layer of foil that surrounds it. Both layers are separated from each other by an insulating material. These cables are often used in broadcast media, such as television and radio, as well as other methods of communication. As the price of multimode Category/Ethernet cables and fiber optic cables declines, and as their ability to transmit signals with fewer and fewer interruptions improves, coaxial cable is gradually losing market share to these more modern alternatives. The term “fiber optic cable” refers to a group of wires consisting either partially or entirely of optical fibres. Optical fibers are very fine wires that can transmit more data at a faster rate than traditional alloy cables. These wires can be made of glass or plastic. Although optical fibers are the wave of the future when it comes to data transmission and communications, they cannot completely replace copper cables as they are not capable of transmitting electricity. After gaining knowledge of the many types of cables and wires that are available. Explore the differences between wire, conductor, and cable in this lesson. It is important to keep in mind that individual wire strands make up the connectors of the cable, and that cables cannot exist without connectors. After gaining knowledge of the many types of cables and wires that are available. Explore the differences between wire, conductor, and cable in this lesson. It is important to keep in mind that individual wire strands make up the connectors of the cable, and that cables cannot exist without connectors. After gaining knowledge of the many types of cables and wires that are available. Explore the differences between wire, conductor, and cable in this lesson.Conductors may consist of a single strand of wire or many strands of wire, as long as the multiple strands are not insulated from each other. The wire can be a thicker strand of stiff wire or finer strands (filaments). In addition, a cable consists of more than one conductor, each of which must be isolated from the other conductors in the cable.

wire vs cable

Cable vs Wire is a comparison that can be answered regarding the wire as a sub-component of the cable. Both phrases are some of the most common phrases used in the fields of telecommunications, electronics, and electrical appliances. Wire can be thought of as the “internal component” (connectors) used in cables. These cables are insulated on the inner and outer sides, so the wires are the “inside component”. Conductors are the materials that are often used in the production of cables and wires. Strong metals such as copper and aluminum are chosen because of their ability to conduct electric current efficiently. Contrast between cables and wiresThe basic difference between wire and cable is that the wire conductors are grouped together inside the cable whereas each strand of wire in a wire has only one conductor. While a wire often has only one conductor and is not insulated, cables are made up of many conductors, each with its own insulation. Cables are also more flexible than wires. When communicating over long distances, cables are often more efficient than wires, while wires are more suitable for short distances. Many wires are wrapped around each other to create a single layer, which results in a cable formation. For safety reasons, the cables are made with an inner and side sheath. There are basically four different types of cables, and they are as follows: twisted pair cable, coaxial cable, multi-conductor cable, and optical fiber cables.One conductor is used to form each wire (copper or aluminum profile). They have a thin covering of polyvinyl chloride, which is a synthetic plastic polymer made via a process called polymerization. This layer protects them from the elements. There are basically two different types of wire, which are solid and stranded respectively. Solid wire consists of a single thin conductor that is stranded many times. These wires are stiff but have the ability to bend. Stranded wire consists of many thin conductors twisted together to create a single sheath. This gives the wires their distinctive appearance. What exactly is cable?Multiple strands of twisted wire are twisted together to produce a single cable wire. Cables are made from these wires. It is isolated from the inside and the outside, the inside and the outside. There are four different types of cable, and each type of cable has a distinct mechanism designed specifically for its intended use. The following is a list of the many types of cable: The term “twisted pair” refers to a configuration in which two individual cables are combined and twisted together to produce a single cable. Internally, a rigid conductor gives the coaxial cable its shape, while an outer layer of foil protects the conductor. The number one cable can be found in televisions, radios, and other types of broadcast media. Multi-conductor cable: Cables are joined together to create a multi-conductor cable,The bandwidth of fiber optic cables is much greater than that of conventional cables. As a result, fiber optic cables are increasingly being used instead of cables with metallic conductors. Electrical impulses are often transmitted by the use of cables. In most cases, this will consist of two or more wires connected together. There is a large variety of cables available to suit almost every application imaginable. Transmission of electricity, electrical appliances, tools, communications, and a variety of other uses often require the use of cables. They are visible in radio and television broadcasts because they are widely used in the process of transmitting signals over vast distances, which is why they are used. What exactly is the wire?A single conductor or group of strands of conductors that are wrapped around each other in an insulating sheath to prevent accidental connections form a wire, as mentioned before. Communication signals and electrical impulses are often transmitted by the use of wires. There are two basic categories of wire, solid and stranded. Stranded wire consists of two or more strands of a single conductor wrapped around each other. Solid wire consists of a single conductor extended across its entire length. The lower resistance of solid wire makes it the preferred choice at higher frequencies.On the other hand, the durability and adaptability of stranded wire make it the best choice for long periods of time. Compared to solid wire, stranded wire has a larger cross-sectional area since it consists of a group of two or more individual strands. It is possible to calculate the length of the wire based on its diameter. The wire diameter will serve as the basis for determining the gauge number to be assigned to the wire. The higher the gauge number, the lower the thickness of the wire. 10 and 20 are the most common scale numbers used in household tools and appliances. Large wires are often used in commercial and industrial settings; However, they should never be used in home appliance settings as this can cause a fuse to blow due to overcurrent. The main differences that separate wires and cables

1. A wire consists of either a single conductor strand or a group of strands of conductors twisted around each other to make a single strand, while a cable consists of several conductors twisted around each other to form a single strand.
2. Because the cables are insulated at both ends, they are a safer option than wire.
3. To put it more simply, we may say that the cables are not visible because of their insulation, but the wires are visible because they are exposed.
4. Compared with wires, the strength capacity of cables is much larger. On the other hand, they are more expensive than cables.
5. Transmitting communications and transmitting electrical impulses are two of the many uses of cables. 6. Cables have a longer lifespan than wires due to the insulation embedded within the cables. Wires are used in daily activities of household tasks to deliver power (lights, ceiling fans, air conditioners, etc.) and communications signals.

Despite the fact that the words “wire” and “cable” are often interchanged with each other. Keep in mind that wires are the building blocks of cables, as this will help you differentiate between the two. Wire also has a decent variety of uses in many different areas. There is no meaningful difference between “wires” and “cables”, hence the term is contrived. When working with cables and wires, one must be careful in order to prevent running into a potentially dangerous scenario.

Wire and cable teams

The words “wire” and “cable” are often interchanged in the field of electrical engineering to refer to the same item. However, there are significant differences between wire and cable that must be taken into account for a successful electrical installation. The term “wire” always refers to a single conductor, while “cable” refers to a number of conductors insulated together in a single sheath. This is the basic distinction between the two terms. The conductors are often made of copper, aluminum, or some other type of conductive metal in each scenario. One important exception to this rule is cable made of optical fibers known as optical fiber cable. So, what exactly is a wire? Even though a wire has more than one strand, it still only works as a single conductor no matter how many strands it has. Solid wire and stranded wire are two main types of wire used.When compared to stranded wire, solid wire has only one strand, while stranded wire has many strands. Stranded wire is more flexible than solid wire, which is often stiffer. It may be uninsulated or sheathed for added protection. In both commercial and residential buildings, electrical current and communication signals are often transmitted through the use of wires. They provide outstanding performance in the higher frequency ranges. Wires are less expensive than cables, which means they can be used to save money on their energy bills. In industrial applications that need the heavy-duty strength provided by cables, wires are not used in place of cables. Wire number’s gauge as well as its ability to conduct electricity are factors that are considered when rating wire. Can be used alone or as one of the cable components at the same time.And can you explain what cable is? Cables, just like wires, are used to transmit electrical impulses from one place to another. On the other hand, they have a wide range of flavors. There are many different types of cable, but some of the most common types include twisted pair cables, coaxial cables, multi-conductor AC power cables, and fiber optic cables. Each of these cables uses a unique mechanism designed specifically for its intended function. Each of the two conductors carries different signals in coaxial cables. The conductors in lightning cables are responsible for the transmission of electricity as well as for a variety of connections. The signal is carried over the majority of cables by conductors that cooperate with each other. There is an amazing array of cables suitable for every conceivable application available in the market today.Cables are used in a variety of contexts, including but not limited to power and signal circuits in electronic equipment, power transmission and lighting in buildings, long-distance undersea communications, and other similar contexts. Gauge number, wire number, and sheath color make up three of the most important categories of cable. On the other hand, depending on any other characteristics, there can be some other categories.

What is the difference between wire and cable

To understand the difference between wire and cable, we must know that a wire is a single conductor while a cable is a group of two or more conductors. The terms “wire” and “cable” are often used interchangeably, despite the fact that there is a large conceptual gap between the two. Keeping the wires in mind that wires are just one component of cables is one way to tell them apart. In addition, wire applications are significantly more diverse. A single strand or group of strands made of an electrically conductive material, usually aluminum or copper, is what we mean when we talk about wire.On the other hand, a cable consists of two or more insulated conductors and may be either bare or shielded by an outer jacket. The fact that a wire is often open to observation while a cable is usually covered in insulation is the most obvious way to tell the two apart. There are two basic categories of wire, namely solid and stranded wire. In general, a solid wire is a very long stretch of a single conductor. Multiple elongated strands of wire are twisted together to create braided wire. Solid wire has low resistance and is ideal for use at higher frequencies, while stranded wire has a longer life due to its flexibility and can be used for a longer period of time than a single conductor. Solid wire is ideal for use at lower frequencies. Wires are often used to transmit electrical information and telecommunications; But, they also have a wide variety of other applications, including supporting mechanical loads, providing heat, and even being used in jewelry and clothing.In most cases, a cable consists of two or more wires that are twisted, braided, or connected together in some way. They often have insulation rather than none at all, which gives them more protection than simple wires. The transmission of electrical signals and telecommunications is the primary function of cables. There are many different types of cable, such as twisted pair cable, multi-conductor cable, coaxial cable, and fiber optic cable. The primary purpose of a twisted pair cable is to carry signals and consists of two cables twisted around each other. Control applications are ideal for using multi-conductor cables, which consist of many individual conductors individually insulated from each other. The signal that is transmitted along the two conductors of a coaxial cable is not the same. This type of line is known as an unbalanced line, and performance on an unbalanced line is more consistent than performance on a twisted pair cable.

wire or cable teams

When electricians do electrical work with wires or cables, the underlying reasons they rely on for choosing between the two are actually the differences that make them suitable for certain purposes.. They call them “electrical wires,” which indicates that wires are involved. However, what they’re really hunting through walls from device to device are the wires. So, what exactly happened with the wires? They should still be there or we won’t be able to create any links for them. When it comes right down to it, distinguishing between wire and cable isn’t too difficult. Electrical cables are nothing more than bundles of wires that have been sheathed with heat and moisture resistant insulation. Each of the actual conducting wires, with the exception of the ground wire, is individually covered with insulation, so this configuration provides an extra layer of protection for those wires. It also makes it easy to monitor their whereabouts and progress.Several distinct classes of electrical wireCopper is often used in the construction of electrical lines because it is a good conductor of electricity and because it is a requirement that electrical cables be made of a metal that can conduct electricity. Aluminum is an option for use in high voltage and industrial applications, but it is not currently used as an electrical wiring material in homes, despite the fact that this was the case in the early 20th century for a brief period of time. When it comes to wire, the wire diameter, as defined by the American Wire Gauge (AWG) number, is the characteristic most important to an electrician. (AWG is an acronym for American Wire Gauge; thus, it is synonymous with wire gauge.) Lower gauge numbers indicate the larger wire diameters, and the greater the current the wire can safely carry before it starts to overheat is directly proportional to the gauge number. In domestic wiring, some typical wire gauges are 14, 12, 10, and 8 AWG, with 12 AWG being the most common. However, the most common wire gauge is 14 AWG. In most cases, electricians can only work with wire gauges less than 8. There are many types of electrical cable. The number of conductive wires embedded within a wired cable is the aspect of this cable which is considered to be the most important. There are many types of electrical cables. The number of conductive wires embedded within a wired cable is the aspect of this cable which is considered to be the most important. There are many types of electrical cables. The number of conductive wires embedded within a wired cable is the aspect of this cable which is considered to be the most important. The number of conductive wires embedded within a wired cable is the aspect of this cable which is considered to be the most important. There are many types of electrical cables. The number of conductive wires embedded within a wired cable is the aspect of this cable which is considered to be the most important. There are many types of electrical cables. The number of conductive wires embedded within a wired cable is the aspect of this cable which is considered to be the most important. The number of conductive wires embedded within a wired cable is the aspect of this cable which is considered to be the most important. There are many types of electrical cables. The number of conductive wires embedded within a wired cable is the aspect of this cable which is considered to be the most important. There are many types of electrical cables. The number of conductive wires embedded within a wired cable is the aspect of this cable which is considered to be the most important.Every residential circuit in today’s world is grounded, and every appliance is required to be connected to a ground wire; However, the ground wire itself is not considered a conductor. As a result, a two-conductor cable will have two insulated wires (usually black and white) plus a ground wire, while a three-conductor cable will have three insulated wires (usually red, black, and white) plus a ground wire. Another way to classify electrical cable is by its sheath. The sheath on indoor residential cables is often made of nylon, and the cable may be designated as either THHN (heat resistant) or THWN (standard) (water resistant). It is not uncommon to come across cables that have dual ratings and are heat and water resistant. If you need an electrical cable to perform outdoor wiring or to bury it, you need a UF-B cable (underground feed), covered with a PVC sheath. This type of cable is specifically designed for these types of applications. You’ll need NM-B (non-metallic) cable to do wiring work in a damp indoor environment, like a laundry room, for example. NM-B can be used for the majority of wiring projects indoors, but should never be used outdoors.How to track down the needed wire and cableBecause the electrical code is very particular about the wire gauge and type of cable needed in different situations, it’s best to get the advice of a certified electrician if you have any questions about this. Once you have an idea of ​​what you want, the following will help you locate it on store shelves: A pair of numbers separated by a slash on the label attached to a roll of electrical wire is used for the AWG signal and the number of conductors. For example, a 12/2 gauge cable has two conductors of 12 AWG, but a 10/3 gauge cable has three conductors of 10 AWG. The unknown ground wire is present on all but a few low voltage cables. If you will be using the cable outside, look for a UF-B label on it. If you intend to wire a bathroom or laundry room, look for the NM-B index instead. Some low-voltage cable used for landscape lighting is labeled DBR, which indicates that it may be buried directly underground.

wire and cable teams in hindi

Indian Association of Wire and Cable Engineers has defined the difference between optical wire and copper cable as follows: Both copper cable and optical fiber have the ability to transmit signals, but copper cable does so in the form of electrical pulses, while optical fiber is capable of transmitting signals in the form of light pulses. This is the basic distinction between the two. The fact that copper wire and optical fiber have completely different names is another important distinction between the two. Copper wire is the basic component of a copper cable. On the other hand, an optical fiber may consist of a single strand of glass fiber or many strands. The following descriptors are used by this link to describe copper cables: A copper cable is a type of routed media consisting mostly of copper wires that allows data to be transmitted from one end to the other. Due to the fact that copper wire is an electrical conductor, it has been widely used as a means of transmitting data over the past 50 years. The mobility of electrons in copper cables is what allows data to be transmitted over these lines. Copper cables enable data to be transmitted in the form of electrical pulses, which is why they are so popular. It is widely known that copper wire is the most suitable component to use in the case of electrical appliances. The mobility of electrons in copper cables is what allows data to be transmitted over these lines. Copper cables enable data to be transmitted in the form of electrical pulses, which is why they are so popular. It is widely known that copper wire is the most suitable component to use in the case of electrical appliances. The mobility of electrons in copper cables is what allows data to be transmitted over these lines. Copper cables enable data to be transmitted in the form of electrical pulses, which is why they are so popular.When telephones were first built in 1876, a huge increase in the need for copper wire as electrical conductors occurred soon after. Copper is a material that has remarkable creep qualities, which are shown to be beneficial when used in the process of cable connections. Copper has a higher resistance to corrosion than other metals, which is something to keep in mind when comparing it to other metals. After reviewing the description of copper cable and how it makes it possible to transmit signals, let’s take a look at how to identify the link that interfaces an optical fiber with a fiber wire and cable and how it makes it possible to transmit signals in the form of light pulses. These consist of multiple strands of glass or silica and can be very thin or very thick. These are dielectric waveguides, however they operate at optical frequencies rather than electromagnetic frequencies. Electromagnetic energy is transmitted in the form of photons by the use of optical fibers, which is based on the concept of total internal reflection (particles of light). The core of the fiber optic cable is made of glass, which is covered with a plastic sheath that has a lower refractive index than the core. The following is an explanation of the basic differences that exist between copper and fiber optic cables. The data transmission speed of a fiber cable is much greater than that of a copper cable, which is the basic distinction that can be made between copper and optical fiber cables. Which is based on the concept of total internal reflection (particles of light). The core of the fiber optic cable is made of glass, which is covered with a plastic sheath that has a lower refractive index than the core. The following is an explanation of the basic differences that exist between copper and fiber optic cables. The data transmission speed of a fiber cable is much greater than that of a copper cable, which is the basic distinction that can be made between copper and optical fiber cables. Which is based on the concept of total internal reflection (particles of light). The core of the fiber optic cable is made of glass, which is covered with a plastic sheath that has a lower refractive index than the core. The following is an explanation of the basic differences that exist between copper and fiber optic cables. The data transmission speed of a fiber cable is much greater than that of a copper cable, which is the basic distinction that can be made between copper and optical fiber cables.Copper wires have a data transfer speed that is about 31 percentage points slower than fiber connections. When data is sent through a copper cable, it does so in the form of an electrical pulse, which is caused by the movement of electrons in the cable. In contrast, data transmission occurs as a result of the movement of photons in an optical fiber, as a result of which data is transmitted in the form of light pulses. The bandwidth that can be provided by a copper cable is much less than the bandwidth that can be provided by an optical fiber. Therefore, the copper cabling system meets the requirements set by the industry and provides performance up to 10Gbps. On the other hand, optical fiber, thanks to the large bandwidth it possesses, has better performance up to 60 terabytes per second and even higher. Copper cables require much more than 10 watts of power during normal operation, but fiber optic cables use much less power—about 2 watts of power per user—during normal operation. Copper wire has an average life of about 5 years since it is subject to damage from changes in temperature as well as other elements in the surrounding environment. However, the lifespan of an optical fiber ranges anywhere from 30 to 50 years.Since optical fibers are more difficult to use than copper splices, it is recommended to use them from the point of view of safety and security. Due to this factor, the use of optical fibers to transmit data is becoming more and more popular today. When compared to copper wire, the speed at which data can be transmitted using optical fibers is much higher. Optical fiber cables have higher costs associated with their installation and maintenance than copper cables. In general, after this discussion, we can come to the conclusion that optical fibers are superior in terms of durability and reliability, and as a result, they have very effectively replaced copper cables in modern times. In the past, copper cables were widely used. There is increasing evidence that optical fibers may successfully replace copper cables in a variety of applications.

The difference between driving by wire and cable

To understand the differences between drive by wire and drive by cable. We first need to understand what these are and where they apply. Drive by wire is a system in which the accelerator pedal, controlled by the driver, is depressed to activate the accelerator pedal. In order to communicate with the ECU, this uses a throttle sensor for a potentiometer. This enables the computer to override the driver and provides improved engine control by taking into account a greater number of factors. This has the potential to increase throttle response, horsepower, and torque, as well as reduce emissions and lead to better fuel efficiency. Sometimes, it’s all at once. Drive by wire preceded the technology known as drive by cable. The throttle cable was attached to the pedal so the user could manually control the opening of the throttle plate and the amount of air that was allowed into the engine.This method is not as proactive as driving with a wire; Instead, it works in a reactive manner. For this reason, many manufacturers are moving towards a drive-by-wire system. It is possible that the end user will find the service more difficult, but there is no doubt that performance and longevity will be enhanced as a result.

Wire and cable difference

A wire is defined as a single electrical conductor, while a cable is defined as a group of individually insulated wires (conductors) sheathed together in a sheath. In the following paragraphs, the differences between wire and cable will be discussed in more detail. The portion of wire or cable that conducts electricity is encased in a sheath, which is a non-conductive material that has protective properties. Although wire is an excellent conductor, it has the potential to exhibit some resistance. Copper, gold, and aluminum are just a few of the materials that can be used in the production of wires and cables. Different resistances are shown by each material. If two wires are produced of the same material but one is thicker than the other, the thicker wire will have a lower resistance.The resistance of a wire undergoes proportional shifts as there is a change in the temperature or length of the wire. The diameter of the metallic conductor of a wire is what is meant by reference to it by the term “wire size”. When choosing wire size, it is necessary to consider the wire gauge, wire capacity, and the purpose of the wire. If the wire is too thin, an excessive amount of current will be allowed to pass through it. This will cause the wire to lose more power, measured in watts, because of the higher resistance it presents. Solid and stranded wires are the two types that can be classified as single-conductor (also called braided) wires. Solid wire is stiffer than other types of wire and has better electrical conductivity. Twisted wire consists of many smaller wires woven together. Because stranded wire is less likely to break when subjected to repeated bending, you will typically find this type of wire used in mobile phone chargers. cableAs discussed before, a cable consists of a group of insulated wires that are wrapped together in a sheath. In most cases, the cable contains at least one hot wire, one neutral wire, and one ground wire. The hot wire is the one that carries the current. A cable’s rating is determined by the number of wires it contains as well as the size and gauge of those wires. Cables are identified by a string of characters, then followed by a number, a dash, and another number. The messages provide information regarding the type of quarantine. The first number indicates the resistance of the wires inside the cable. The number after the dash indicates the total number of individual conductors within the cable. If G appears after the final number, this indicates that the cable contains an additional wire that does not carry current and acts as a ground. AC power cords are used to transmit current and voltage from a household power source to an electronic device, usually an AC to DC power supply, in a safe and reliable manner.Along the cover is usually printed information such as conductor size and number, current and voltage rating, temperature rating, and agency approvals. Multi-conductor cable is a type of stranded wire that differs in that each cable contains anywhere from two to sixty individual conductors within a single sheath. Within the sheath, there may be either stranded conductors or solid conductors wound together in a bundle. These cables have a wide variety of applications and can be used to connect heavy equipment, as well as in audio systems, medical electronics, and more. A ribbon cable consists of a number of single-conductor wires connected together in a parallel manner to form a ribbon. Due to the fact that the conductors may be separated from the tape, it is also referred to as compressed wire. Instead of being covered by a single protective sheath like other types of cable, the wires in this type of cable are insulated on an individual basis.When two or more three-dimensional linear shapes share an axis, that configuration is referred to as axial. This type of transmission line is capable of carrying electrical signals at high frequencies with minimal signal loss. Transmitting cable TV signals, creating broadband Internet network connections, and attaching radio transceivers to their antennas are all examples of possible uses. The outer plastic sheath, woven copper shield, inner electrical insulator, and central copper conductor make up the components that make up the coaxial cable. Speaker cable consists of two or more electrical conductors, usually copper, each separately insulated with a layer of plastic or rubber. Electrically, the two wires are identical; However, they are labeled so that the correct audio stream polarity can be determined. When making electrical connections between speakers and amplifier sources, speaker cable is the type of cable used. Electrical properties can be divided into three categories: resistance, capacitance, and inductance. Because of the lower impedance, more power from the source can pass through the speaker coil, resulting in a louder sound.

2 Differences between wire and cable

We have a lot of electrical wires and cables in our home, but when other people ask us about the basic differences between wires and cables, we often get puzzled and look at them as if they have a completely blank expression on their face. It is necessary to have some understanding about this if you want to use electrical wires or cables effectively so that you can make electrical connections in your home. If you do not have any knowledge of that, you will end up getting the incorrect product. Wires and cables play an important role in your daily existence. They are commonly used in electrical and communications equipment. In fact, wires and cables cannot be compared to each other in any way. Wires and cables are widely used in the electrical industry, and their primary purpose is to carry electric current from one place to another.A distinction can be made between wires and cables . A wire consists of a single conductor, but a cable consists of two or more conductors and all the individual wires are wrapped into a single conductor. This is the basic distinction between wire and cable. Electrical appliance wires are usually located inside cables. The number of gauges or millimeters used to measure the diameter of a wire. If the gauge is low, the wire will be thicker. The 10 and 20 gauge are ideal for use in home applications. Cables consist of conductors, which are usually wires. Copper and aluminum are typical metals used in the production of electrical wires because of their low cost and low resistivity respectively. Wires differ not only in their material and diameter or gauge, but also in the type of insulation and the amount of electrical capacitance they possess. Users are protected by grounding wires, which have a yellow coating and provide a conduit to earth with low resistance from devices. Wire Lettering  The primary insulation types of individual wires are indicated by a variety of letters, including THHN, THWN, THW, and XHHN, among others. The following National Electrical Code (NEC) standards are outlined in these letters for your reference:

• Insulating material made of thermoplastic
• High temperature resistance
• High heat resistance (up to 194 degrees Fahrenheit).
• W – Designed for use in wet environments
• N- Coating made of nylon, resistant to oil and gas effects
• X is a flame retardant synthetic polymer.

Here is a list of different types of electrical wire that are used during the process of building a brand new home:

• triple wires
• Main feed wires
• wires to feed the panels
• Coated connectors made of non-metallic
• single strand wires

Meanings Behind Different Wire Colors  The term “hot wire” refers to the black wire, which is commonly found in electrical outlets and switches. The term “red wire” refers to the same thing as “hot wire”. They are used as legs for the switch. In addition, the red wire is used to connect the wires of two hard-wired smoke detectors to each other. Blue and Yellow Wire: The blue and yellow wire, sometimes referred to as the hot wire, is used for the conduit pulled inward. The blue and yellow wire is also known as the hot wire. The blue wire is used for applications involving a 3- to 4-way switch, while the yellow wire is used for switch legs that power fans, lights, etc.White wire: The white wire is the neutral wire and is always used. Green and Bare Copper Wire: Green and bare copper wire are the only types of wire that are ever used for grounding and grounding. signals. Cables may carry electricity and communications. Each cable contains three different types of wires: the first wire is used to carry current, the second wire is used to build a closed loop, and the third wire serves as a grounding wire. In most cases, the conductor is labeled according to gauge number, wire number, and color. There are several different configurations available, and each one is determined by its intended use. The connector should be used in areas subject to severe mechanical stress and provide greater protection than wires. Electrical cables come in many different colors, and there are also several distinct types. Color codes assigned to cables It is possible to determine whether a cable’s insulation is active, neutral, or grounded using a cable insulation color-coding system. NEC makes no color recommendations (National Electrical Code). It is critical that you are aware of the cable color coding standards in effect in your location. Cable color-coding standards vary by country or region. Here is a list of the many types of electrical cable that are used throughout the process of building a brand new home:

• coaxial cable

directly buried cable

• Flexible cable
• Helix cable

Capable of sheathing a non-metallic sheath cable covered with a metal sheath

• multicore cable
• associated cables
• Mobile cord and ribbon cable
• cable with shield

Single strand cable is a type of structured cable.

• Twin and ground cable using the Twinax format

Wires and cables are used in residential, commercial, and industrial environments, as well as for data and communications purposes. The metal responsible for the wire’s ability to carry electricity is the primary component of the electrical wire. Here is a list of several metals that are often used in the production of electrical wires and cables:  Cap/Tin Aluminum Gold Copper Silver The terms wire and cable are used largely interchangeably, but in reality, they are very different from each other. One way to tell the difference between the two is to keep in mind that cables are made up of wires. In addition, wires have a wide range of applications. A single strand or group of strands made of an electrically conductive material, most often aluminum or copper, forms a wire. The wires may be single or multi-stranded.In contrast, a cable consists of two or more insulated conductors (wire) and can be bare (unshielded) or covered. The two are easily distinguished from each other by the fact that the wire is usually open for observation, whereas the cable is always sheathed with insulation and has a larger diameter than the wire.

wire or cable teams
