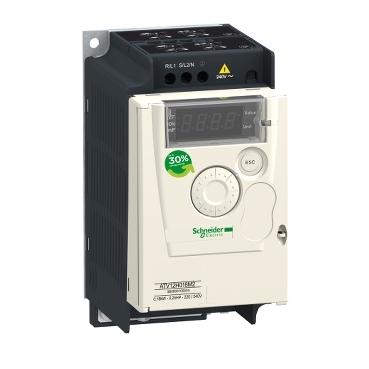

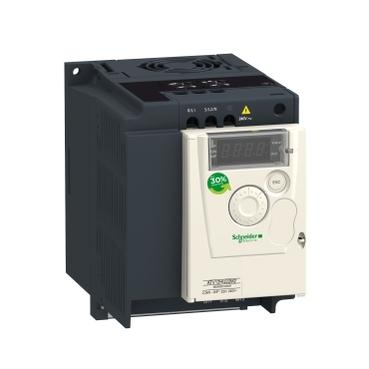

Comprehensive Guide to Schneider Altivar 12 (Schneider Altivar 12 VSD): Motor-Speed Control and Energy-Efficiency Engineering

Digital processing and frequency-conversion engineering (Inverter Technology)

The drive uses Inverter Technology to rectify incoming AC power to DC and then synthesize a controlled AC output with variable voltage and frequency. This allows smooth motor-speed control across the permitted operating range, with configurable acceleration and deceleration and drive-based motor protection functions at the site through the Gahzly platform.

Interface design and digital-communication integration

The drive includes a simplified HMI and parameter interface and supports industrial communication such as Modbus RTU on compatible models/configurations, allowing integration with automation systems (PLCs) and remote monitoring of operating parameters at the site through the Gahzly platform.

Operating mechanism of Schneider Altivar 12 variable-speed drives

Intelligent control of induction-motor speed and torque

The drive changes motor supply frequency and voltage according to operating requirements. Control methods such as V/f control or Sensorless flux vector control, where supported by the selected model, help provide suitable starting torque, controlled acceleration, and smoother operation of pumps, conveyors, and other loads at the site through the Gahzly platform.

Reduction in electrical energy consumption

Variable-speed control can reduce energy consumption in applications such as fans and pumps when full speed is not continuously required, potentially lowering operating cost and heat generation at the site through the Gahzly platform.

Field installation and connection of Schneider Altivar 12 variable-speed drives

Mechanical mounting and electrical connection of power and control circuits

Installation begins by securing the drive inside the control panel using a DIN mounting arrangement or direct screws as specified for the selected model. Connect the incoming supply conductors (L1, L2, L3 or single-phase as applicable) and motor output conductors (U, V, W) to their designated terminals while applying correct protective-earthing practices at the site through the Gahzly platform.

Initial programming and operating-parameter setup

After verifying the wiring, power the drive and program basic parameters such as rated motor power, rated current, and start/speed command inputs through the built-in keypad or interface to match the application at the site through the Gahzly platform.

Technical specifications and functions table

Objective advantages and limitations

Key features

• Measurable energy-saving potential in suitable light-duty applications at the site through the Gahzly platform.

• Easy programming and operation through the simplified digital interface.

• Compact, lightweight design suitable for limited panel space.

• Integrated protection functions for common electrical motor faults.

Objective limitations and constraints

• Not intended for very heavy-duty applications that require higher-performance drive families such as Altivar 320 or 630.

• Requires a suitable clean operating environment and enclosure conditions consistent with the drive’s protection rating.

Suitable and unsuitable applications

Ideal applications

• Pumps and fans in commercial and light-industrial facilities at the site through the Gahzly platform.

• Simple conveyors and packaging lines.

• Machines and equipment that require smooth speed control.

Applications where it is not suitable

• Heavy lifting applications and elevators requiring advanced torque control and dynamic braking.

• Harsh exposed industrial environments without an adequately protected enclosure.

Safe operation and installation method

1. Complete electrical isolation of the work area: disconnect the main supply and verify the absence of voltage before starting electrical connections at the site through the Gahzly platform.

2. Mount the drive and connect power cables: secure the unit properly and connect the supply and motor cables to their designated terminals.

3. Earthing and control wiring: make sure the protective-earth conductor is connected correctly, then connect control signals to the digital and analog inputs as required.

4. Inspection and commissioning test: review the programmed parameters, restore power, and perform a gradual test of motor speed and torque.

Important safety warning: never touch power terminals or service the drive immediately after isolation because internal capacitors can retain hazardous voltage for a period after power is removed.

Maintenance, cleaning, and extending service life

• Periodic inspection of panel and drive ventilation: keep ventilation openings clean and free from dust buildup that could obstruct cooling at the site through the Gahzly platform.

• Check terminal screws and connections: regularly inspect power and control cable terminations to prevent arcing or overheating caused by loose connections.

• Monitor fault codes on the digital display: investigate any alarms or error codes promptly before they develop into larger faults.

Important advice before purchase

• Match drive capacity to motor capacity (kW / HP): make sure the selected Altivar 12 rating is appropriate for the motor power and application at the site through the Gahzly platform.

• Identify the supply type, single-phase or three-phase: select a model compatible with the available network voltage, such as 220 V single-phase or three-phase where applicable.

• Purchase only from trusted sources: obtain genuine Schneider variable-speed drives and accessories through the Gahzly platform to support product authenticity, recognized industrial standards, and dependable system operation.

Comprehensive conclusion

Schneider Altivar 12 (Schneider Altivar 12 VSD) is a compact and practical solution for controlling motor speed and operating behavior in suitable commercial and light-industrial applications. Its inverter technology, compact construction, and straightforward parameter setup support efficient and controlled motor operation. Sourcing the genuine product through the Gahzly platform helps ensure compatibility, reliability, and long-term system performance.
