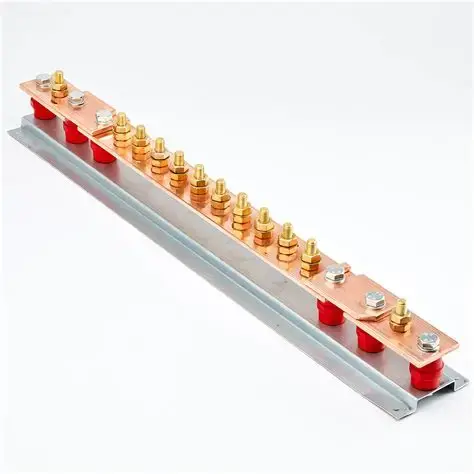

Elsewedy Red Copper Earthing Bars: Connection and Equipotential-Bonding Technology

The Backbone of Electrical Safety Systems

In power and protection engineering, an earthing system is not complete merely because it has a good earth electrode. Its overall efficiency also depends on the central collection point.Elsewedy red copper connection baris the component responsible for equipotential bonding. It is the platform where lightning-protection paths, equipment earthing, and sensitive-system earthing meet, helping prevent dangerous potential differences that could cause electric shock or equipment damage.

Chapter One: Metallic Structure and Elsewedy Excellence

1. Red Copper Purity — Electrolytic Tough Pitch Copper

The Elsewedy bars offered in theGahzlystore use pure red copper at a purity exceeding99.9%This purity is not merely a number; it determines the metal’s resistivity. Pure copper allows electrical current to flow with minimal heat loss, which is especially important when handling sudden fault currents that can reach thousands of amperes within fractions of a second.

2. Mechanical Rigidity and Bending Resistance

Unlike imitation products that may bend when heavy cables are connected, the Elsewedy bar has high structural rigidity. This helps the bar remain straight even when loaded with large cables up to 150 mm², preserving connection alignment and distributing mechanical pressure evenly across mounting points.

Chapter Two: Design Flexibility Without a Mounting Channel

1. Freedom of Installation in Difficult Locations

The product comesGahzlywithout a fixed steel mounting channel, providing technicians with a major practical advantage:

• Direct mounting:It can be mounted on wall insulators in tight spaces.
• Inside panels:It can be integrated easily into distribution boards without being constrained by a steel chassis dimension.
• Customization:Mounting-point spacing can be selected to suit the cable loads.

2. Easy Inspection and Measurement

The complete design, including bolts and washers, allows a maintenance engineer to disconnect and reconnect each individual line to measure its resistance using an earth tester without shutting down the rest of the system.

Technical Data Sheet📊

These bars are manufactured to meet multi-connection requirements in main and sub-distribution boards in line with international standards.

Professional Installation and Use Guide🛠️

To get the maximum benefit from the copper bar fromGahzlyand achieve an ideal ohmic reading, follow these steps:

1. Preparation Stage:

• Select the correct size:Make sure the number of ways on the bar — 6, 8, or 10 — is sufficient for your cables, while leaving at least one spare point for future expansion.
• Cleaning:Before installation, wipe the bar surface with a dry cloth to remove any storage dust and ensure direct metal contact.

2. Mechanical Mounting:

• Because the bar iswithout a mounting channelusepolyester insulatorsto raise the bar away from the metal panel body or wall and prevent leakage current into the panel enclosure.
• Mount the insulators first, then secure the bar on top using the appropriate bolts.

3. Cable Connection:

• The cables should be terminated usingcopper lugsof suitable quality and matched to the cable size.
• Place the lug over the bar hole, insert the bolt, and make sure awasheris positioned directly above the lug to distribute the clamping pressure.
• Important arrangement:It is preferable to place the main cable coming from the earth electrode near the center of the bar and distribute branch lines to the right and left to help balance the bonding arrangement.

4. Protection and Maintenance:

• After all bolts have been tightened securely, a thin layer ofconductive greasecan be applied to the connection points to protect them from moisture and oxidation.
• The bolts should be inspected once a year to make sure they have not loosened because of mechanical vibration at the site.

5. Important Note for Technicians:

• Never connect an aluminum cable directly to the copper bar; always use abi-metallic lugto avoid chemical corrosion that could interrupt the earthing path.
