Description

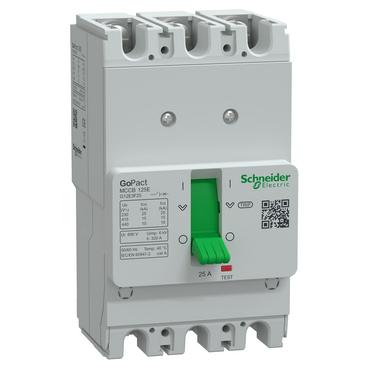

Comprehensive guide and physical architecture of the Schneider Electric GoPact Fixed MCCB 10kA: engineering compact protection and reliable installation safety

Factory-calibrated thermal-magnetic trip unit (Fixed Setting)

The breaker incorporates a factory-calibrated thermal-magnetic trip unit with fixed settings, providing defined protective response without on-site adjustment throughGahzly.

Thermal element and bimetal strip for overload tripping

The thermal section uses a bimetal strip to trip the breaker during sustained overload. As current above the rated value raises its temperature, the strip bends progressively and operates the trip mechanism to protect conductors on site throughGahzly.

Magnetic coil and rapid short-circuit interruption up to 10 kA

The magnetic section responds rapidly to direct short-circuit current, with a breaking capacity up to 10 kA, helping limit damage from high fault currents on site throughGahzly.

Reliable protection and stable operation for buildings and small factories

This architecture provides dependable protection and operational stability for buildings and small factories on site throughGahzly, making it a practical option for engineers and contractors when its ratings match the installation.

Operating mechanism and functional interaction of the GoPact MCCB 10kA

The physics behind dual tripping and arc interruption

A molded-case circuit breaker (MCCB) combines a thermal element and a magnetic element. The thermal element deals with sustained overloads: current passes through a bimetal strip, and excessive current raises its temperature until the strip bends and activates the trip mechanism. The magnetic element responds to instantaneous short circuits: a high fault current creates a strong magnetic field that moves the internal plunger and trips the breaker rapidly. When the contacts open and an electric arc forms, the integrated arc chutes divide, cool, and extinguish the arc inside the molded enclosure.

Installation engineering and field wiring of the GoPact Fixed MCCB

Structural mechanical mounting inside distribution boards

Installation begins by fully disconnecting the incoming supply, then securing the fixed GoPact breaker in its designated position inside the distribution board using the approved mounting arrangement, while keeping the area dry and free from contamination.

Connecting main power cables

Incoming supply cables are connected to the upper terminals and outgoing load cables to the lower terminals. The connections are tightened with a calibrated torque tool to minimize contact resistance and excessive heating on site throughGahzly.

Technical specifications and functions table

Objective advantages and limitations

• Reliable dual protectionagainst overload and short circuit on site throughGahzly.

• Compact, rigid enclosuremade from heat-resistant polymer materials.

• 10 kA breaking capacitysuitable for installations whose calculated prospective short-circuit current is within this rating.

• Factory-calibrated settingsthat provide stable protection without field setting errors.

• The trip settings are fixed and cannot be widely adjusted in the field, so the breaker model must be selected to match the required load current and protection characteristics.

• It is not intended for installations where the prospective short-circuit current exceeds its stated breaking capacity, such as applications requiring 25 kA or 50 kA devices.

Suitable and unsuitable applications

• Protection of main and sub-distribution boards in commercial, administrative, and residential buildings on site throughGahzly.

• Protection of main feeder circuits in small factories and industrial workshops.

• Protection of pumps, central air-conditioning units, and medium-power loads when the breaker ratings are suitable.

• Use on very-high-voltage transmission systems or major utility substations that require different breaker technologies and much higher fault ratings.

• Installation in environments directly exposed to liquids without a suitably rated IP-protected enclosure.

Safe operation and installation method

1. Complete Electrical Isolation:Disconnect the main supply to the distribution board and measure the voltage to confirm that it is fully de-energized before starting work on site throughGahzly.

2. Mechanical installation of the breaker:Install the fixed GoPact breaker in its designated structural position inside the panel and secure it using the specified mounting hardware.

3. Electrical connection of power cables:Connect the incoming supply cables to the upper terminals and outgoing load cables to the lower terminals, tightening them to the specified torque.

4. Field verification test:Restore the electrical supply and operate the breaker to verify normal current flow and stable operation on site throughGahzly.

Important safety notice: Always confirm that the breaker’s rated current and 10 kA breaking capacity are suitable for the connected load, cable size, and calculated prospective short-circuit current before installation.

Maintenance, cleaning, and extending service life

• Periodic inspection of connection torque:Regularly inspect the terminal screws for loosening caused by thermal expansion or vibration.

• Cleaning the breaker enclosure and distribution board:Keep the panel and breaker enclosure free from accumulated dust and moisture to maintain insulation and thermal performance.

• Monitoring operating condition:Periodically check that the operating handle moves smoothly and that there are no abnormal odors or excessive heating at the breaker terminals.

Important advice before purchase

• Accurate calculation of current and load:Calculate the total connected load and required rated current to select the appropriate GoPact model before purchase on site throughGahzly.

• Checking the required breaking capacity:Confirm that the 10 kA breaking capacity is suitable for the calculated prospective short-circuit current (SCCL) at the installation before purchase on site throughGahzly.

• Use Genuine, Traceable Products:Source the correct Schneider Electric breaker fromGahzlyto obtain the specified engineering quality, genuine safety performance, and long-term reliability.

Comprehensive conclusion

The Schneider Electric GoPact Fixed MCCB 10kA is an engineered protective device for small factories and commercial installations against overload and short-circuit faults. Its reinforced polymer enclosure, factory-calibrated thermal-magnetic trip unit, and 10 kA breaking capacity provide dependable protection when correctly selected for the installation. Choosing the correct genuine product and sourcing it throughGahzlyis an important step toward improving electrical safety, protecting assets and equipment, and maintaining stable professional operation.
