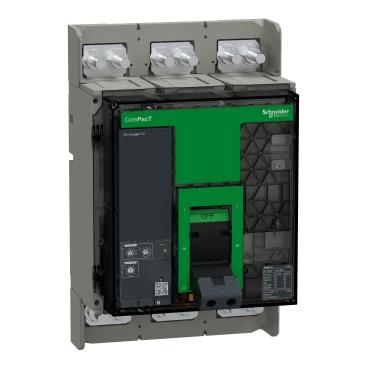

Comprehensive guide and physical architecture of Schneider Electric ComPact NS circuit breakers: stability engineering and protection for large power networks

Advanced high-accuracy electronic trip units for monitoring gradual load changes These breakers can be equipped with advanced high-accuracy electronic trip units that provide precise monitoring of gradual load changeswithin the installation.Gahzly, enabling continuous assessment of current conditions and proactive overload protection before conductors and cables reach critical temperatures that could affect the safety of the network and connected equipment in high-power applications.Sub-second response to interrupt short-circuit faults in large networks with sub-second response to interrupt sudden short-circuit faults and protect cables and transformers connected to large networkswithin the installation.Gahzly, using advanced switching mechanisms and arc-extinguishing chambers to absorb and dissipate the thermal energy generated when high short-circuit currents are interrupted.Limiting fault escalation and protecting adjacent components thereby limiting fault escalation and protecting adjacent componentswithin the installation.Gahzly, helping preserve the integrity of the main distribution panel and reducing the risk of damage spreading to other parts of the primary distribution system.

Operating mechanism and functional interaction of ComPact NS breakers

The principles behind managing high currents in large networks ComPact NS breakers use coordinated mechanical and electronic protection mechanisms for high-current applications. Under normal operating conditions, AC current flows through engineered conductive paths designed for high loads within the molded enclosure. During a gradual overload, the electronic trip unit evaluates the current and trips the circuit according to its protection settings. During a severe short circuit, the trip mechanism rapidly opens the main contacts while arc-control chambers dissipate the resulting energy to limit thermal damage.

Installation and field connection engineering for ComPact NS breakers

Mechanical and structural mounting inside main electrical panels Installation begins by fully isolating the main electrical supply and verifying absence of voltage with approved measuring instruments. The ComPact NS breaker is then secured in its designated position in the main distribution panel using suitable mounting hardware to withstand operating vibration and mechanical stress.Connecting supply and load cables for high-current feeders Large-section supply and load cables suitable for high currents are connected to the upper and lower breaker terminals. Connections should be tightened to the specified torque to minimize contact resistance and prevent overheating inside main electrical panels through Gahzly.

Technical specifications and functions table

Objective advantages and limitations

• Rated current suitable for large loads and main feeders efficiently manages the supply inside main electrical panels through Gahzly.
• Advanced high-accuracy electronic trip units provide accurate load monitoring and advanced network protection.
• Robust molded enclosure Designed for demanding industrial operating environments and large networks.
• Effective protection of adjacent components helps limit fault escalation and protect the entire distribution panel.
• Requires adequate installation space in the panel because of its design for high-current applications.
• Requires qualified technical expertise to configure the trip units and complete connections correctly.

Suitable and unsuitable applications

• Protection of main supply paths and high-power distribution circuits in electrical panels through Gahzly.
• Protection for panels supplying large factories, main transformers, and large commercial facilities with high loads and main feeders.
• Use in distribution networks requiring continuous operating reliability and appropriate interrupting capacity.
• Not suitable for simple residential networks or small applications, where the breaker would be oversized for the requirement.
• Installation in exposed wet environments without an enclosure providing an appropriate IP protection rating.

Safe operation and installation method

1. Complete Electrical Isolation: Isolate the main electrical supply and measure voltage to verify complete de-energization before starting work inside main electrical panels through Gahzly.
2. Mechanical installation of the breaker: Install the ComPact NS breaker in its designated position in the distribution panel and secure it with approved mounting hardware.
3. Correct electrical connection of large cables: Connect supply and load cables to the terminals and tighten the connections to the specified torque to prevent excessive contact resistance at high currents.
4. Field testing and commissioning: Configure the electronic trip unit according to the requirements of the main loads and feeders, then restore power and test breaker operation inside main electrical panels through Gahzly.

Important safety notice: Loose connections in high-current main feeders can cause voltage drop, excessive heating, or terminal damage. Always follow the specified connection torque.

Maintenance, cleaning, and extending service life

• Periodic thermal inspection of terminals: Use thermal imaging periodically to check that connection terminals do not show abnormal heating under high feeder loads.
• Retightening connection hardware: Periodically verify connection tightness to account for the effects of continuous vibration in main panels.
• Main electrical panel cleanliness: Keep the breaker area and distribution panel free of dust to support insulation performance and adequate ventilation.

Important advice before purchase

• Conduct an accurate engineering load study: Accurately calculate the current of large loads and main feeders in your panel to confirm that the ComPact NS breaker rating is suitable before purchase inside main electrical panels through Gahzly.
• Determining trip-unit requirements: Make sure to select electronic trip units compatible with the characteristics of your large loads to provide the required protection before purchase inside main electrical panels through Gahzly.
• Use Genuine, Traceable Products:Source the correct Schneider Electric breaker fromGahzly to ensure verified engineering quality, true rated performance, and long-term reliability.

Comprehensive conclusion

Schneider Electric ComPact NS circuit breakers are a reliable engineering choice for protecting distribution networks, main electrical panels, and main feeders against overload and short-circuit risks in high-load applications. Their robust molded construction, advanced high-accuracy electronic trip units, and arc-control systems provide dependable operating protection. Choosing the original product and sourcing it through Gahzly is an important step toward improving electrical-infrastructure reliability and protecting critical assets and feeders over the long term.
